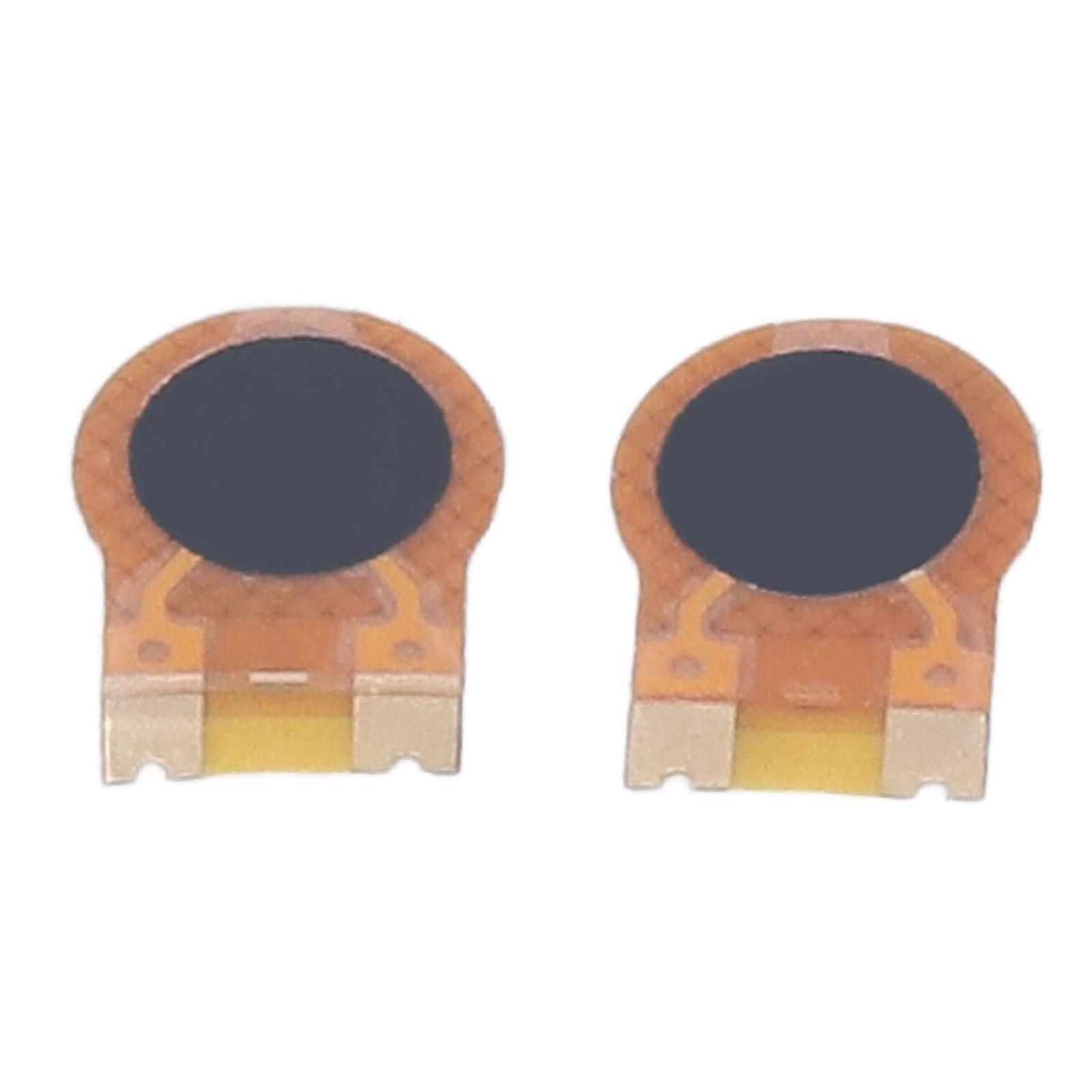

Item Type: Thin Film Pressure Sensor_x000D_ Mode: RF C7.6 L11 LF_x000D_ Material: Polyester, FPC_x000D_ Basic Parameters:_x000D_ Thickness: Approx. 0.25mm / 0.01in with rear ADH_x000D_ Driving Force: Approx. 2 g / 0.1 oz, Res less than or equal to 500 _x000D_ Pressure Range: Approx. 5g to 2kg / 0.2oz to 4.4lb _x000D_ Mode of Action of Pressure: Contact pressing_x000D_ Resistance When not Triggered: Greater than 10M _x000D_ Activation Time: Less than 10mS 1PRODUCT INFORMATION: A resistive sensor is a flexible thin film sensor whose resistance value decreases with the increase of pressure acting on the sensing area. 2OPERATING PRINCIPLE: A single sensing zone sensor is equivalent to a dual port variable resistor whose resistance value is controlled by pressure, and it is also equivalent to a switch with a certain threshold value, which is jointly determined by the pressure and equipment parameter setting. 3FINE WORKMANSHIP: The sensor is composed of polyester film with excellent comprehensive mechanical properties, strong conductivity FPC material, and nanoscale pressure sensitive material. The top layer is a flexible film and a composite pressure sensitive layer on top, while the bottom layer is a flexible film and a composite conductive circuit on top. 4USE DETAILS: Two are bonded and isolated from the sensing area through double sided tape( not included). When the sensing area is under pressure, the lines that are disconnected from each other at the bottom layer will conduct through the top layer of the pressure sensitive layer, and the resistance output value of the port will change with the pressure. 5EXCELLENT PERFORMANCE: Film pressure sensor has static and dynamic pressure sensing and quick response speed, has long durability and lifespan. 2 x Sensor
