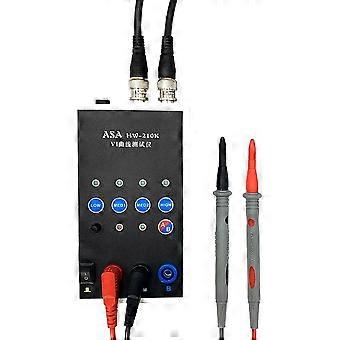

Handheld Portable Dual-channel Vi Curve Tester Circuit Board Online Detection Asa Tester 4 Gear Frequency Alternating Speed Adjustable

₺2.749,00
+ ₺296,49 Kargo

Handheld Portable Dual-channel Vi Curve Tester Circuit Board Online Detection Asa Tester 4 Gear Frequency Alternating Speed Adjustable

Handheld Portable Dual-channel Vi Curve Tester Circuit Board Online Detection Asa Tester 4 Gear Frequency Alternating Speed Adjustable

Önerilen Perakende Fiyatı: ₺7.890,00
Fiyat: ₺2.749,00
Kazancınız: ₺5.141,00 (65%)
Satıcı:
₺2.749,00
+ ₺296,49 Kargo

Stokta var

Biz aşağıdaki ödeme yöntemlerini kabul ediyoruz

Tanım

Features:  4 test frequencies, can be used when connected to an oscilloscope, both analogs oscilloscopes and digital oscilloscopes can be used.  Dual signal input, alternating display function allows you to use it in easier.  4-gear frequency, alternating speed adjustable, you can adjust it according to your needs.  One click on singles channel/alternating display, which can give you a better using experience.  When testing the circuit board online, do not recharge the circuit board. If there is a large capacitor on the circuit board, discharge the capacitor first, otherwise it is easy to burn out the VI test board.     Specifications:  Material: plastics.  Channel: 2 channels.  Frequency: 4 gears.  Package size: 195 * 135 * 105mm / 7.7 * 5.3 * 4.1in.  Package weight: 435g / 1.0lb.  Oscilloscope parameter setting:  1. Adjust the oscilloscope to X-Y mode (different oscilloscopes have different adjustment methods, please explore by yourself).  2. Adjust the vertical parameters of the 2 channels of X Y to 1V/div, and only one of the single-track oscilloscopes needs to be adjusted.   3. The analog oscilloscope does not need to adjust the time base, the digital oscilloscope time base is adjusted between 1-5ms.  4. After the connection is correct, the oscilloscope will display a horizontal line. If a vertical line is displayed, the xY plug will be reversed. 5. Adjust the vertical and horizontal parameters, the horizontal and vertical lines are in the display box.  Method of connecting analog oscilloscope:  1. The analog oscilloscope connection is relatively simple, and different oscilloscopes are slightly different.  2. Adjust the oscilloscope to xY mode. Some oscilloscopes can be selected by pressing the buttons, while others are selected by the knob to xY mode. Please study by yourself.  3. Connect the BNC cable to the oscilloscope and power on. Normally, a horizontal line will be displayed. Adjust the xY vertical channel parameters, about 1V/div, and then adjust the x Y attenuation so that the horizontal line is in the display frame. It can also pass the VI test version. The x attenuation potentiometer on the upper side can assist in adjusting the length of the horizontal line. If the test pen iis short-circuited, a vertical line will be displayed under normal circumstances. If the vertical line is too long or too short, you need to adjust the Y channel parameters to make the vertical line in the display frame. Half grid or 1 grid to the edge is better. If the horizontal and vertical lines are normal, you can enter the normal measurement.  How to connect a digital oscilloscope:  For digital oscilloscopes, enter the xY mode through the menu or keys. The two channels of xY are adjusted to 1V/div, and the single-track oscilloscope only needs to adjust the Y channel. Adjust the time base to 1-5 milliseconds. The xY channel selects DC coupling, and the attenuation is 1x.  When the oscilloscope is not connected, the screen should be a bright spot. Adjust the horizontal and vertical to center the bright spot. Connect the VI tester. Normally, it should be a horizontal line. Adjust the 103 potentiometer at the top of the VI board to make the horizontal line in the display frame. , Half a grid or 1 grid to the edge is better. Short-circuit the test leads, and the display should be a vertical line at this time.
  • Fruugo Kimliği: 324776281-719600285
  • EAN: 8727971258491

Ürün Güvenlik Bilgileri

Lütfen aşağıda özetlenen bu ürüne özel ürün güvenlik bilgilerine bakın.

Aşağıdaki bilgiler bu ürünü satan bağımsız üçüncü taraf perakendeci tarafından sağlanmaktadır.

Güvenlik Uyarıları: Not suitable for children under 36 months, The parcel bag is not a toy. Keep away from children to avoid suffocation hazards.
