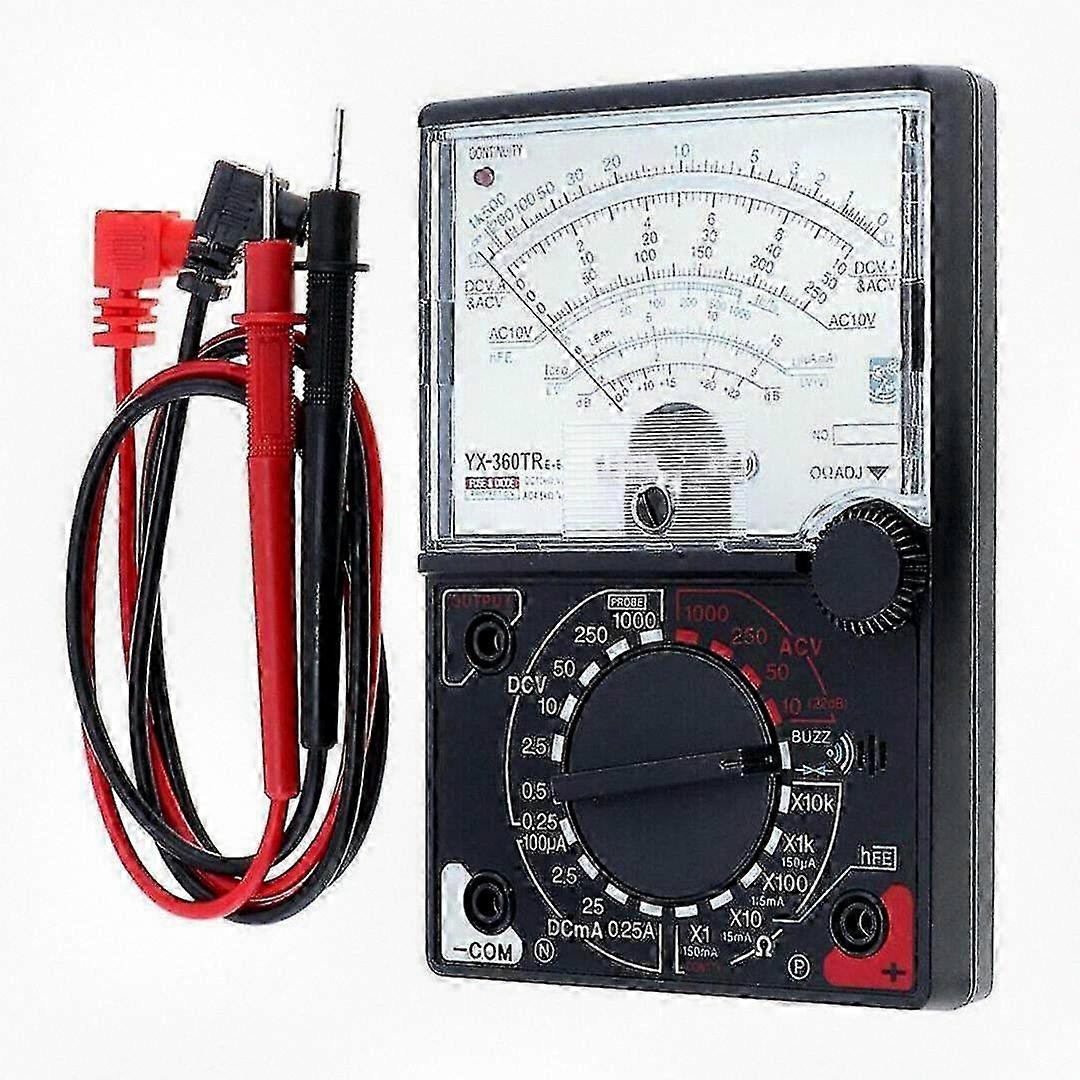

OPERATION TEST: Insert the test leads into the COM and + sockets. Set the range selector to the designated range position. Short the test leads and adjust the 0A DJ to align the pointer to the zero position. Ensure that there is no voltage present in the circuit being tested. Connect the test leads to the resistor being tested and read the scale according to the reference table. CONTINUITY TEST (BUZZ): Turn the range selector knob to BUZZ, apply the test lead pins to the two points being tested, and check continuity. The buzzer will sound when the resistance is between 0 and approximately 120. Testing cannot be conducted on points with applied voltage. CONTINUITY TEST (LED): Set the range selector to the "CONT'Y" position. Connect the test leads to the tested circuit. If the LED in the tester lights up, this indicates that the circuit is continuous. SURFACE MOUNT TECHNOLOGY. POLARITY SWITCH FUNCTION. 10A DC CURRENT MEASUREMENTS. FUSE AND DIODE PROTECTION. Analog Multimeter with Mirror Scale, Built-in Buzzer, and LED 0 Adjustment with X 100 Range for Transistor Testing, hFE with Diode. Testing Resistance Range: X1, X10, X100, X1K, X10K. Special Functions: Diode Test, Transistor Testing, Continuity Buzzer about 100 Function Protection Iceo: 150A - 15mA - 150mA. AC Voltage (Volts): 10-1000. VAC Voltage Accuracy: 4%. DC Voltage (Volts): 0.1mV-1000. VDC Voltage Accuracy: 3%. DC Current (Amp): 50A-10. ADC Current Accuracy: 3%. Resistance (Ohm): 0.2 - 20 M. Resistance Accuracy: 3%. hFE (TR Amplification Factor): 0-1000. Size (mm): 148x100x35 mm. Includes Test Leads. Package includes: 1 x Multimeter 1 x Manual 1 Pair Test Pen.
