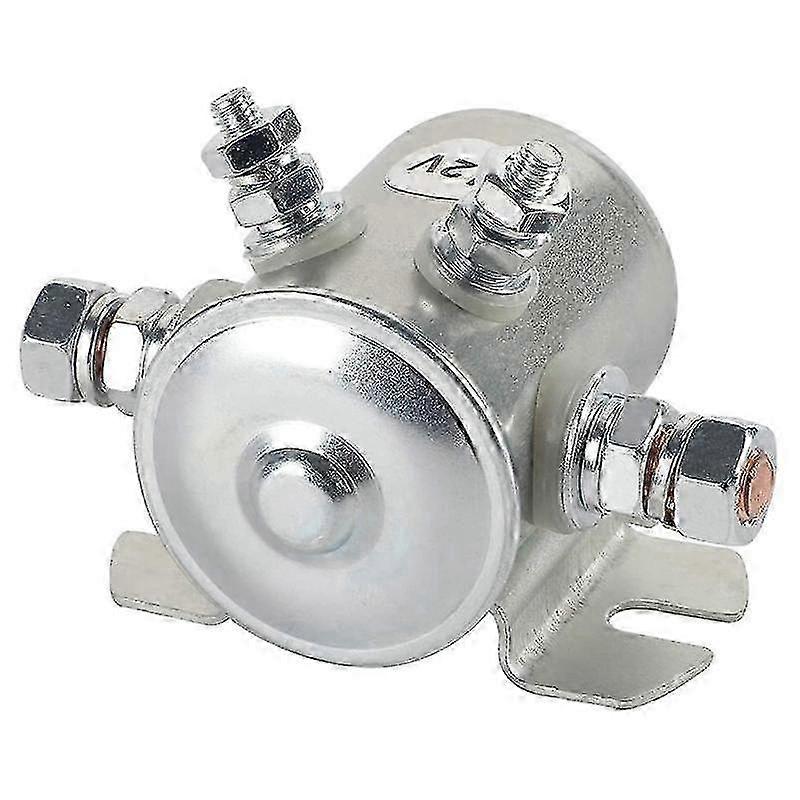

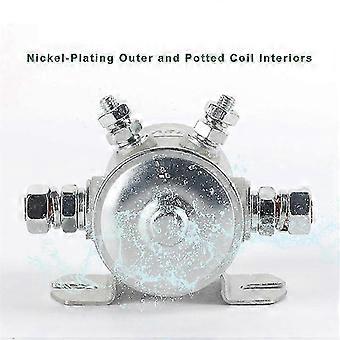

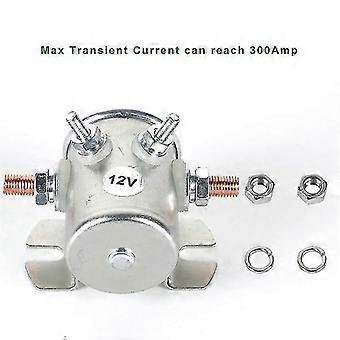

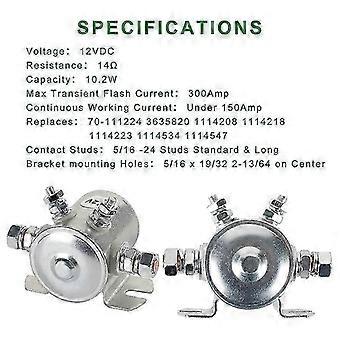

CIRCUIT CHARACTERISTICS-Single pole single throw with 2 Silver POINT. Resistance is 14, Capacity is 10.2W,12 V DC. HIGH QUALITY-Copper wire temperature resistance: 180 . Cover is Nickel-Plating, Meet Environmental Plating Requirment, And Avoid Rusting, Shining FITMENT-300A Continuous Duty Solenoid Relay Nickel-Plating For Golf Carts,Winch, Marine REPLACES-70-111224,3635820, 1114208, 1114218, 1114223, 1114534, 1114547. 1. The product conforms to OC / t695-2002 relay standard 2. There are no missing parts and fasteners are not loose; 3. Voltage: 12 0.48v 4. Circuit characteristics: single pole single throw 5. Coil parameters: wire diameter: 0 . 4, number of turns: 1200, temperature resistance: 180 6. 12V: the starting voltage Less than 8V, the releasing voltage Less than 2.5V 7. Coil winding resistance value test: 12V resistance value = 10 . 5Q 5 % ( 20 ) 8. White zinc plating on shell, 8 thick, 48 hours salt spray 9. Insulation resistance: the sine wave voltage is 550V and the test lasts for 1min. The insulation will not be broken down 10. Use temperature range (- 30 - + 85) degrees 11. Relative humidity less than 90% 12. Contact load current 300A, duration 3S; contact voltage drop less than equal 0.2V (20A) 13. Maximum instantaneous current 600A (within 3 seconds) 14. Winding skeleton 30% reinforced flame retardant nylon 15. The durability of relay is tested more than 80000 times when it is powered on alone Material:metal colour:Silver Package Contents: 1 x Solenoid Relay With accessories Only the above package content, other are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
