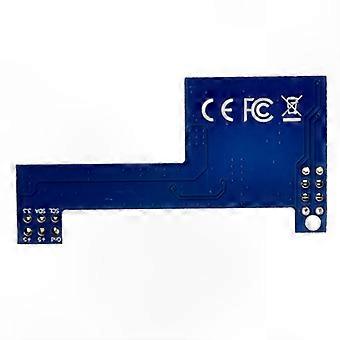

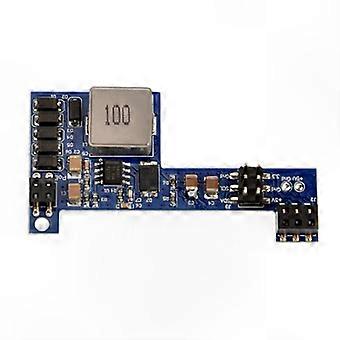

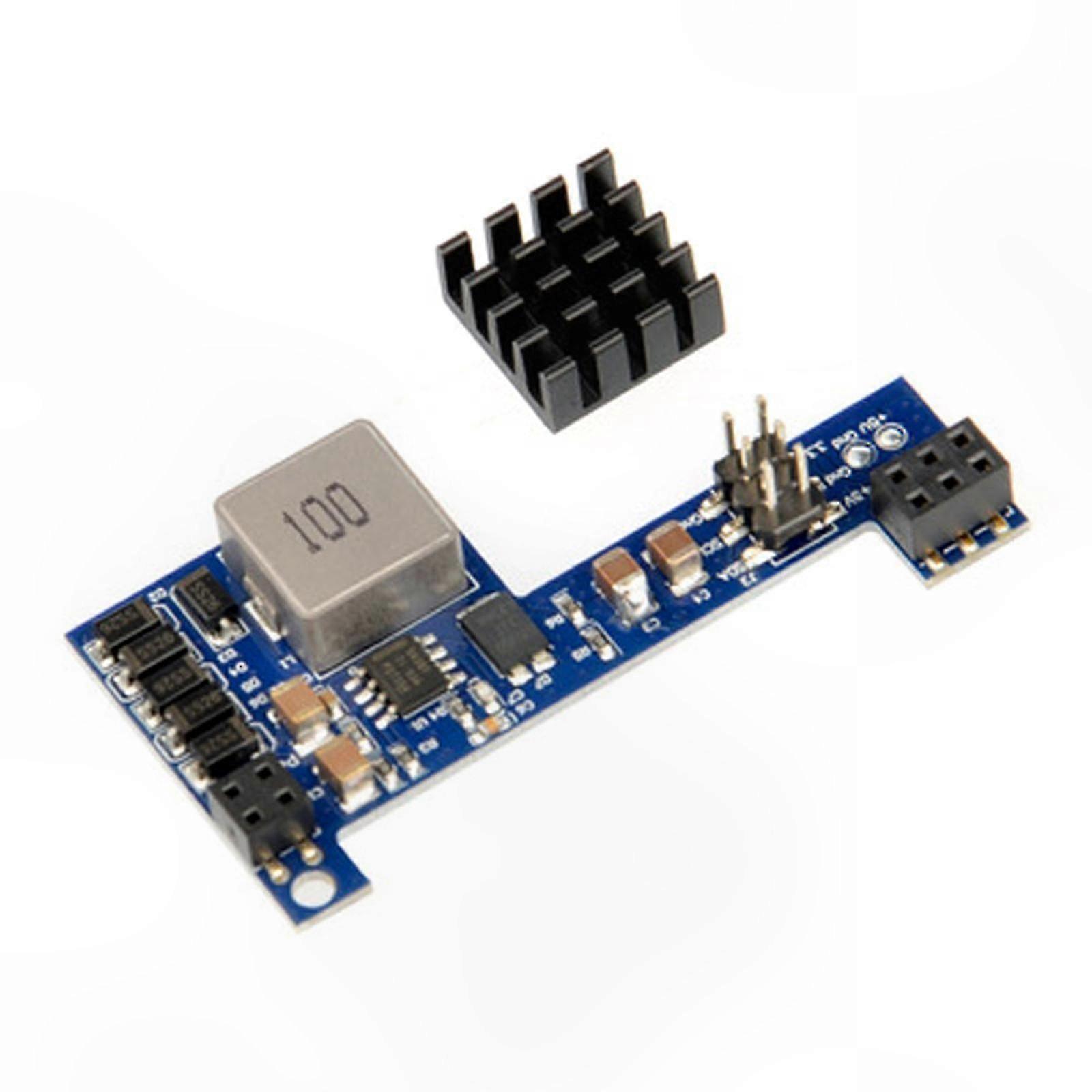

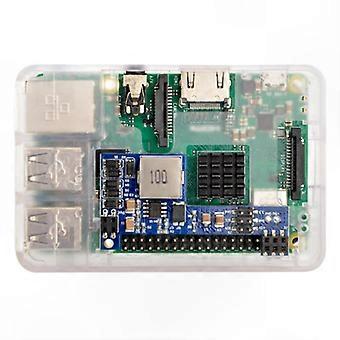

Features: This PoE-World device provides a low-profile and efficient solution for powering a Raspberry Pi 3B+ or 4 via a 328ft network cable. The device allows power to be delivered over 10/100/1000 networks through passive injectors and switches using CAT5e, CAT6, or CAT7 Ethernet cables. The PoE power supply operates with an input voltage range of 12 to 56 VDC at a central location. Higher DC voltage reduces current, resulting in lower power loss over long cable runs. This PoE to 5-volt converter enables operation of the Raspberry Pi up to 328 feet (100 meters) from the power source. Connector pins are available for GPIO and serial use. The board includes space for a large heat sink. The output power is fully regulated, stable, and produces lower noise compared to the Raspberry Pi’s built-in power system. Output power ranges from 12.5 to 15 watts, exceeding the 802.3af standard and providing sufficient power for most applications. HDMI, USB, and RJ45 peripherals can be connected safely. Note that up to 300 mA may flow through the ground connection. Specifications: Power and data source input: RJ45 female connector compatible with Raspberry Pi 3B+ or Pi 4 Data to powered device: All four pairs active for 10/100/1000 Mbps operation PoE Mode B: Pins 4&5 (positive), 7&8 (negative); PoE Mode A: Pins 1&2 and 3&6 (auto polarity) Input voltage range: 12 to 56 VDC Input current: 265 mA at 48V provides 2A output Output voltage under maximum load: 5V (10W) Output current: - 12V input: 2.5A, 12.5W output - 24V input or higher: 3.0A, 15W output Dimensions: Approximately 65 x 39 x 11 mm (2.56 x 1.53 x 0.43 in), measured from the top of Pi pins Note: Product appearance may vary slightly due to lighting and camera angles. Allow 0–1 cm variation due to manual measurement. Package includes: 1 x POE-PiHat Module
